The simulators are available on the Windows platform and require a monthly fee. You will need a login and password to use either of the simulators - please request them using the contact form. Please see below some screen shots of the applications. You can click on them to get a better view.
You can download the latest version of the simulator for vertical wells here.
The simulator for horizontal and inclined wells is available here.

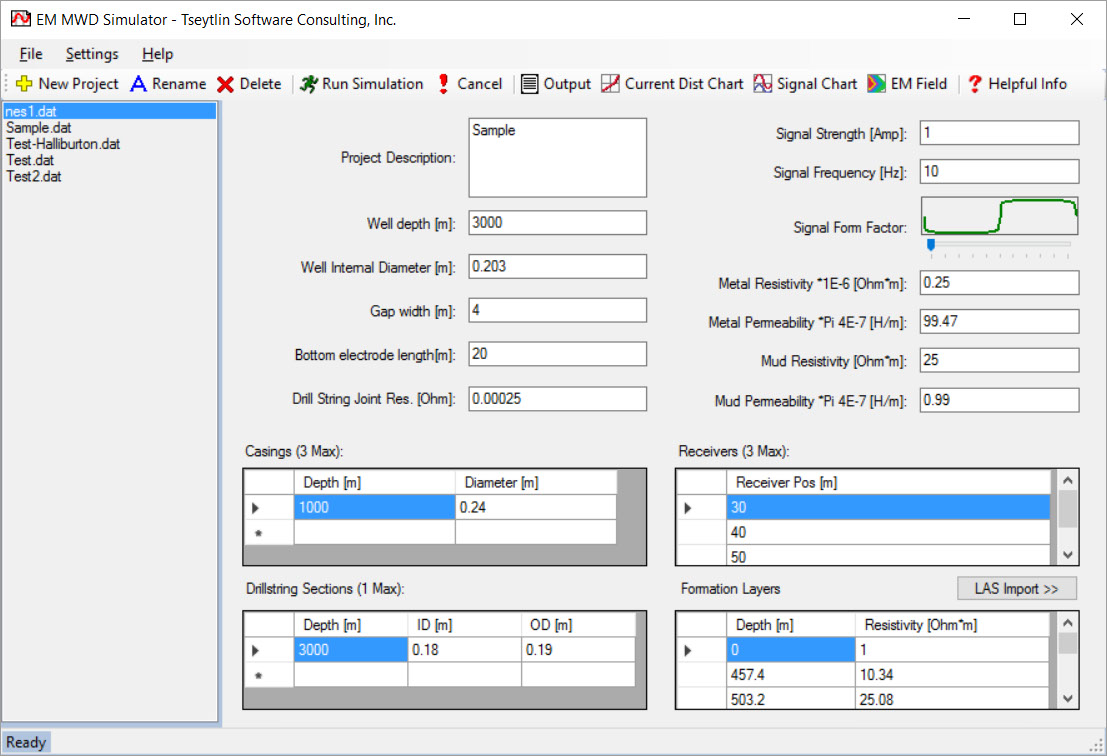

Input data screen.
Chart of current distribution along drillstring.

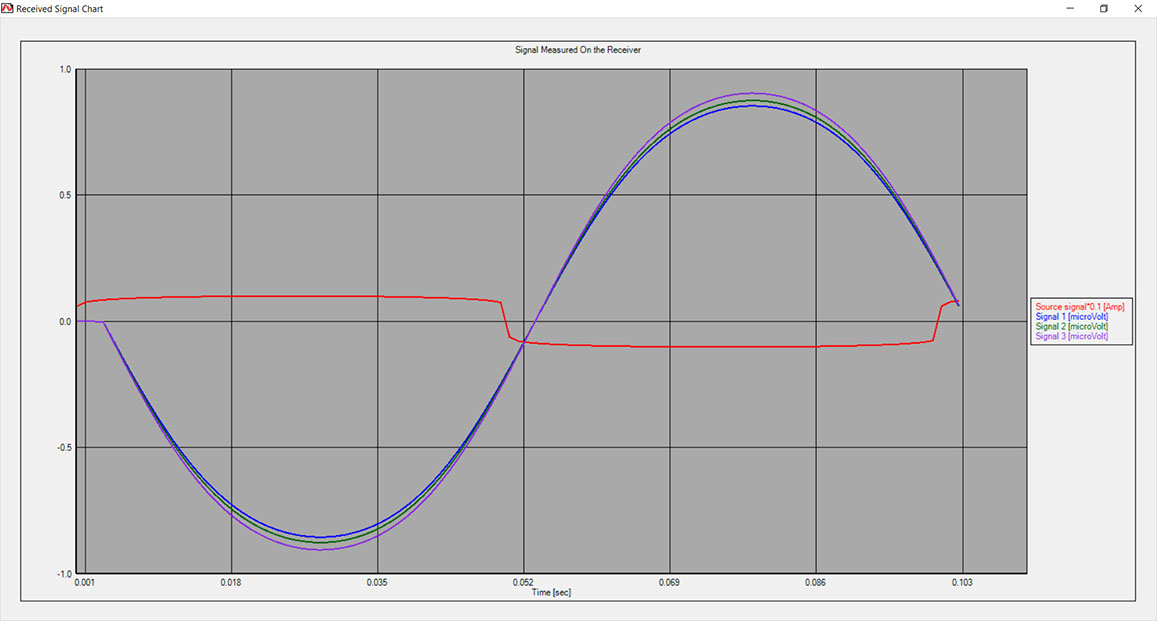

Chart of the signal received on 3 individual antennas.
Frame of the animation of electromagnetic field in the solution area.
<
>
